KPMI OE Style Valve Guide Seal 71035-4 for Harley-Davidson Panhead 1948-1965
$15.00

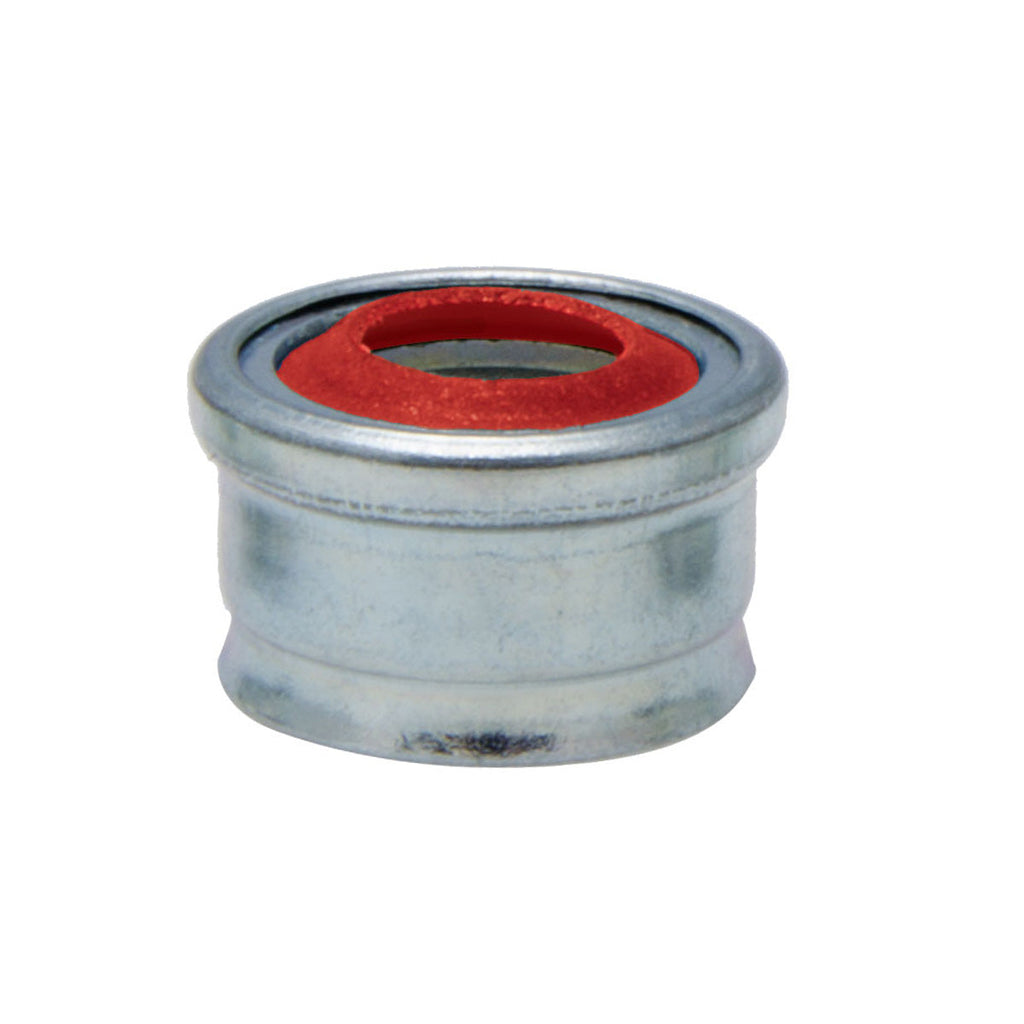

These OE-style valve guide seals feature a low-friction, graphite-impregnated PTFE sealing element engineered to conform to mating surfaces and manage oil flow without letting parts run dry. The durable PTFE material maintains its mechanical integrity at temperatures up to 260°C (500°F) for dependable performance in demanding conditions.
Designed with steel cladding, these low-profile seals provide exceptional seal-to-retainer clearance and fit neatly inside dual spring assemblies. They offer direct compatibility for classic Harley-Davidson Panhead and Shovelhead engine builds.
Key Features
| Brand | KPMI |
| Type | Intake / Exhaust |
| Material | Solid Teflon (Graphite-Impregnated PTFE) / Steel Clad |
| Valve Stem Diameter | 9.5 mm (3/8") |

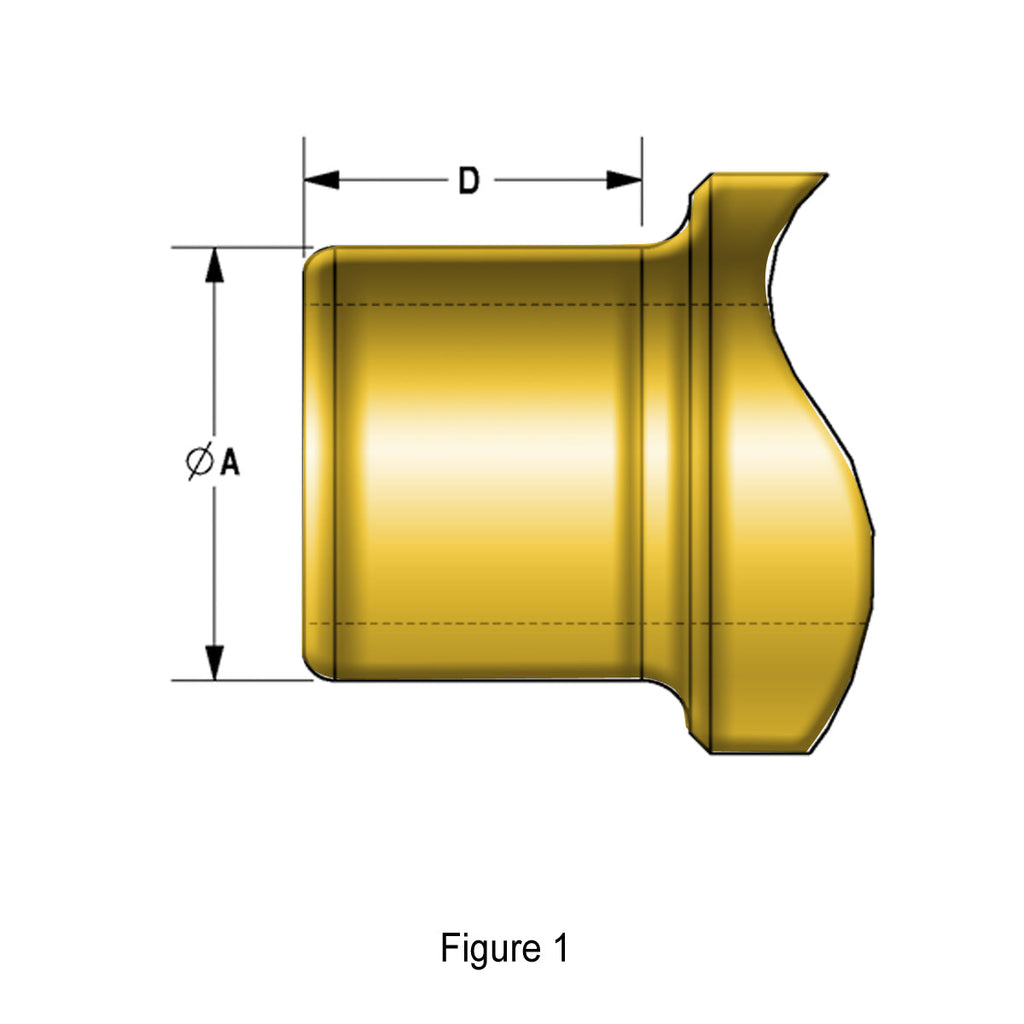

| Guide Diameter (A) | 14.3 mm (0.562") |
| Overall Length | 9.5 mm (0.375") |
| Seal Outer Diameter | 16.8 mm (0.660") |
| Dimension D | 8.0 mm (0.315") |
| Maximum Operating Temperature | 260°C (500°F) |
| Product Weight | 0.05 kg |
Highlights
- Graphite-impregnated PTFE element conforms to mating surfaces to control oil flow
- Maintains structural and mechanical properties up to 260°C (500°F)
- Low-profile, steel-clad construction fits dual valve spring assemblies
- Precision fit for 9.5 mm (3/8") stems and 14.3 mm (0.562") valve guides
Compatibility
- 1948–1965 Harley-Davidson Panhead (4 required)
- 1966–1977 Harley-Davidson Shovelhead 74" (4 required)
